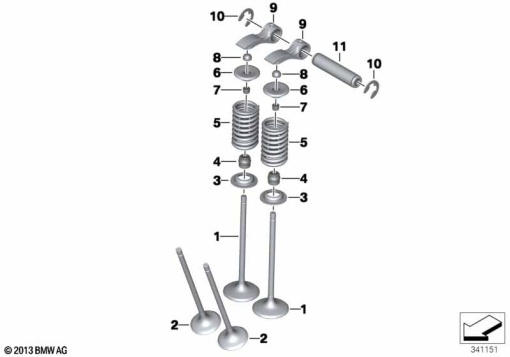

Parts List (34)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 34 7 690 470 | INTAKE VALVE - D=31MM | - | |
| 2 | 11 34 7 690 469 | EXHAUST VALVE - D=27,5MM | - | |
| 3 | 11 34 7 690 472 | LOWER SPRING PLATE | - | |
| 4 | 11 34 7 687 602 | VALVE SEAL RING - D=5 | - | |
| 5 | 11 34 7 688 358 | VALVE SPRING | - | |
| 6 | 11 34 7 671 928 | UPPER SPRING PLATE | - | |
| 7 | 11 34 7 690 473 | VALVE COLLET | - | |
| 8 | 11 34 7 721 166 | SEMI-SPHERE - 4,60 | - | |
11 34 7 721 167 | SEMI-SPHERE - 4,65Alternative for position 8 | - | ||
11 34 7 721 168 | SEMI-SPHERE - 4,70Alternative for position 8 | - | ||
11 34 7 721 170 | SEMI-SPHERE - 4,75Alternative for position 8 | - | ||
11 34 7 721 172 | SEMI-SPHERE - 4,80Alternative for position 8 | - | ||
11 34 7 721 174 | SEMI-SPHERE - 4,85Alternative for position 8 | - | ||
11 34 7 721 176 | SEMI-SPHERE - 4,90Alternative for position 8 | - | ||
11 34 7 721 178 | SEMI-SPHERE - 4,95Alternative for position 8 | - | ||
11 34 7 721 180 | SEMI-SPHERE - 5,00Alternative for position 8 | - | ||
11 34 7 721 182 | SEMI-SPHERE - 5,05Alternative for position 8 | - | ||
11 34 7 721 184 | SEMI-SPHERE - 5,10Alternative for position 8 | - | ||
11 34 7 721 186 | SEMI-SPHERE - 5,15Alternative for position 8 | - | ||
11 34 7 721 187 | SEMI-SPHERE - 5,20Alternative for position 8 | - | ||
11 34 7 721 188 | SEMI-SPHERE - 5,25Alternative for position 8 | - | ||
11 34 7 721 189 | SEMI-SPHERE - 5,30Alternative for position 8 | - | ||
11 34 7 721 190 | SEMI-SPHERE - 5,35Alternative for position 8 | - | ||
11 34 7 721 191 | SEMI-SPHERE - 5,40Alternative for position 8 | - | ||
11 34 7 721 192 | SEMI-SPHERE - 5,45Alternative for position 8 | - | ||
11 34 7 721 193 | SEMI-SPHERE - 5,50Alternative for position 8 | - | ||
11 34 7 721 194 | SEMI-SPHERE - 5,55Alternative for position 8 | - | ||
11 34 7 721 195 | SEMI-SPHERE - 5,60Alternative for position 8 | - | ||
11 34 7 721 196 | SEMI-SPHERE - 5,65Alternative for position 8 | - | ||
11 34 7 721 197 | SEMI-SPHERE - 5,70Alternative for position 8 | - | ||
| 9 | 11 33 1 540 854 | ROCKER ARM | - | |
11 33 1 540 854 | Rocker ArmAlternative for position 9 | - | ||
| 10 | 11 33 7 707 547 | CIRCLIP | - | |
| 11 | 11 34 7 699 522 | ROCKER ARM SHAFT | - |
