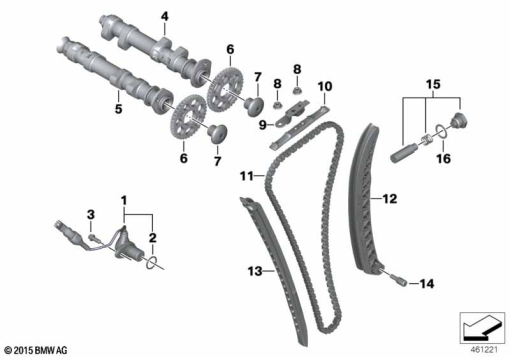

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 72 8 555 265 | CAMSHAFT POSITION SENSOR | - | |
| 2 | 12 72 7 694 010 | O-RING - 17X2 | - | |
| 3 | 23 00 7 690 404 | HEXAGON BOLT WITH INSIDE TORX - M6X16-8.8 | - | |
| 4 | 11 31 7 708 477 | INLET CAMSHAFT | - | |
| 5 | 11 31 7 708 478 | CAMSHAFT EXHAUST | - | |
| 6 | 11 31 7 708 198 | CAMSHAFT SPROCKET - Z=38 | - | |
| 7 | 11 31 7 690 464 | SCREW PLUG, INNER TORX - M18X1,5 | - | |
| 8 | 11 12 7 690 460 | HEX NUT - M6 | - | |
| 9 | 11 31 7 689 533 | HOLDER | - | |
| 10 | 11 31 7 689 494 | SLIDING PIECE | - | |
| 11 | 11 31 7 690 475 | TIMING CHAIN | - | |
| 12 | 11 31 7 690 493 | CHAIN TENSIONER | - | |
| 13 | 11 31 8 531 493 | GUIDE RAIL | - | |
| 14 | 11 31 7 676 592 | BEARING SCREW - M6X31-MK | - | |
| 15 | 11 31 8 531 009 | SET OF CHAIN TENSIONERS | - | |
| 16 | 11 31 2 343 091 | GASKET RING - 18,2X24X1 | - |
