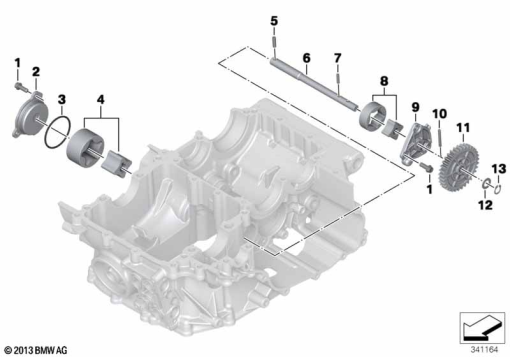

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 00 7 690 404 | HEXAGON BOLT WITH INSIDE TORX - M6X16-8.8 | - | |
| 2 | 11 41 7 708 144 | COVER BLACK | - | |
| 3 | 11 41 7 687 894 | O-RING - 46X2,5 | - | |
| 4 | 11 41 7 690 438 | SET ROTOR, SUCTION SIDE | - | |
| 5 | 11 41 7 687 398 | PIN - 5X16,8 | - | |
| 6 | 11 41 7 690 440 | OIL PUMP SHAFT | - | |
| 7 | 11 41 2 343 105 | ROLL PIN - 4X15,8 | - | |
| 8 | 11 41 7 652 927 | SET ROTOR, PRESSURE SIDE | - | |
| 9 | 11 41 7 721 527 | COVER LEFT | - | |
| 10 | 11 41 2 343 108 | ROLL PIN - 4X29,8 | - | |
| 11 | 11 41 7 690 441 | OIL PUMP GEARWHEEL - Z=33 | - | |
| 12 | 11 41 2 343 107 | STOP DISK - 10,1X17X1 | - | |
| 13 | 11 41 2 343 458 | LOCK RING | - |
