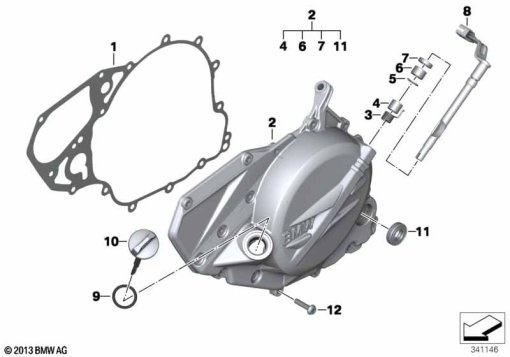

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 7 707 906 | GASKET LEFT | - | |
| 2 | 11 14 8 524 166 | ENGINE HOUSING COVER, BLACK, LEFT | - | |
| - | 11 14 2 343 038 | SHAFT SEAL - 12X28X7 | - | |
| - | 21 21 2 343 259 | SHAFT SEAL - 12X18X4,5 | - | |
| - | 11 11 7 707 906 | GASKET LEFT | - | |
| 3 | 21 21 7 686 585 | SPRING | - | |
| 4 | 21 21 7 670 693 | NEEDLE SLEEVE - 10X14X12 | - | |
| 5 | 21 21 2 343 258 | CIRCLIP | - | |
| 6 | 11 14 2 343 037 | NEEDLE SLEEVE - 12X16X10 | - | |
21 21 7 700 120 | NEEDLE SLEEVE - 12X16X10Alternative for position 6 | - | ||
| 7 | 21 21 2 343 259 | SHAFT SEAL - 12X18X4,5 | - | |
| 8 | 21 21 7 708 143 | RELEASE LEVER, BLACK | - | |
| 9 | 11 43 7 689 572 | O-RING - 21,82X3,53 | - | |
| 10 | 11 43 7 708 131 | DIPSTICK | - | |
| - | 11 43 7 689 572 | O-RING - 21,82X3,53 | - | |
| 11 | 11 14 2 343 038 | SHAFT SEAL - 12X28X7 | - | |
| 12 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | - |
