F650 Funduro (E169) | Rear Axle & Suspension

SINGLE COMPONENTS FOR REAR SPRING STRUT

Diagram #33_0676 | 7 parts

100%

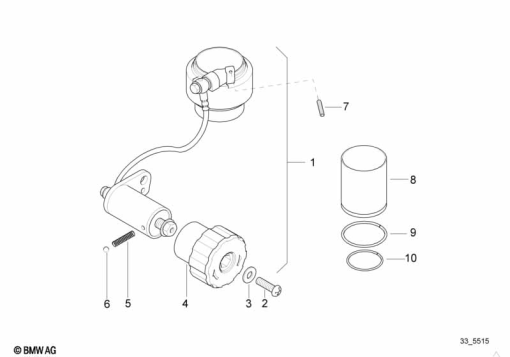

F650 Funduro (E169) SINGLE COMPONENTS FOR REAR SPRING STRUT exploded view parts diagram

Parts List (7)

#Part NumberDescriptionQty
1
33 53 2 345 483
ADJUSTER UNIT-
4
33 53 2 345 489
HANDWHEEL FOR SPRING STRUT ADJUSTMENT-
5
33 53 2 345 487
COMPRESSION SPRING-
6
33 53 2 345 488
BALL-
8
33 53 2 345 485
SLEEVE-
9
33 53 2 345 484
LOCK RING-
10
33 53 2 345 486
LOCK RING-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
