F650 Funduro (E169) | Rear Axle & Suspension

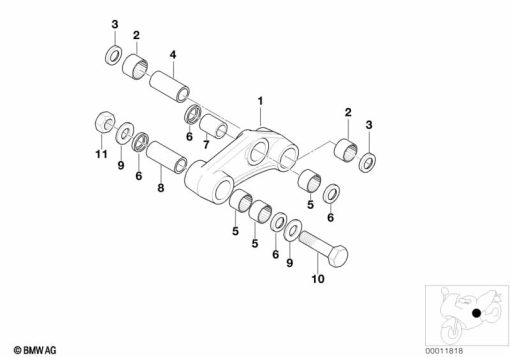

DEFLECTION PARTS F REAR WHEEL SUSPENSION
Diagram #33_0672 | 11 parts
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 53 2 345 296 | DEFLECTION LEVER | - | |
| 2 | 33 17 2 345 283 | NEEDLE SLEEVE - 22X28X16 | - | |
| 3 | 33 53 2 345 442 | GASKET RING - 22X28X4 | - | |
| 4 | 33 53 2 345 436 | BUSH | - | |
| 5 | 33 53 7 650 094 | NEEDLE SLEEVE - 18X24X16 | - | |
| 6 | 33 53 2 345 441 | GASKET RING - 18X24X3 | - | |
| 7 | 33 53 2 345 437 | BUSH | - | |
| 8 | 33 53 7 650 101 | BUSHING - 43X18X10,1 | - | |
| 9 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 10 | 33 17 2 345 392 | HEX BOLT - M10X75 | - | |
| 11 | 33 53 2 345 532 | SELF-LOCKING HEX NUT - M10 | - |
