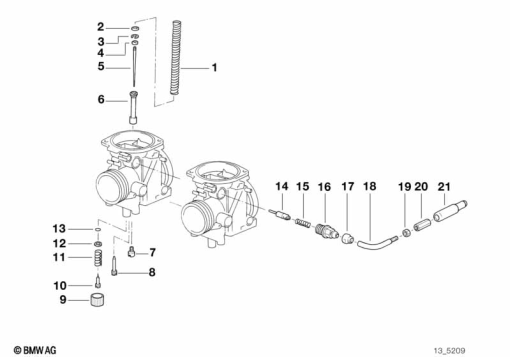

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 11 2 343 375 | SPRING | - | |
| 2 | 13 11 2 343 372 | WASHER | - | |
| 3 | 13 11 2 343 373 | LOCK RING | - | |
| 4 | 13 11 2 343 380 | RING | - | |
| 5 | 13 11 2 343 397 | NOZZLE NEEDLE | - | |
| 6 | 13 11 2 343 395 | VENTURI | - | |
| 7 | 13 11 2 343 396 | MAIN JET | - | |
| 8 | 13 11 2 343 318 | IDLING JET | - | |
| 9 | 13 11 2 343 439 | FIXING PLUG | - | |
| 10 | 13 11 2 343 409 | IDLING MIXTURE SCREW | - | |
| 11 | 13 11 2 343 410 | SPRING | - | |
| 12 | 13 11 2 343 411 | WASHER | - | |
| 13 | 13 11 2 343 412 | O-RING | - | |
| 14 | 13 11 2 343 408 | PISTON | - | |
| 15 | 13 11 2 343 421 | SPRING | - | |
| 16 | 13 11 2 343 422 | GUIDE BUSH | - | |
| 17 | 13 11 2 343 423 | 13 11 2 343 423 | - | |
| 18 | 13 11 2 343 425 | GUIDE CABLE | - | |
| 19 | 13 11 2 343 426 | 13 11 2 343 426 | - | |
| 20 | 13 11 2 343 377 | ADJUSTING NUT | - | |
| 21 | 13 11 2 343 424 | 13 11 2 343 424 | - |
