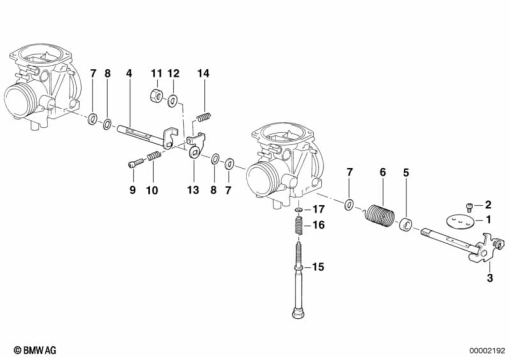

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 11 2 343 371 | THROTTLE | 1 | |
| 2 | 13 11 2 343 370 | FILLISTER HEAD SCREW | 1 | |
| 3 | 13 11 2 343 401 | LEFT THROTTLE SHAFT | 1 | |
| 4 | 13 11 2 343 402 | RIGHT THROTTLE SHAFT | 1 | |
| 5 | 13 11 2 343 413 | BUSH | 1 | |
| 6 | 13 11 2 343 381 | SPRING | 1 | |
| 7 | 13 11 2 343 385 | GASKET | 1 | |
| 8 | 13 11 2 343 417 | WASHER-GASKET | 1 | |
| 9 | 13 11 2 343 389 | FILLISTER HEAD SCREW | 1 | |
| 10 | 13 11 2 343 388 | SPRING | 1 | |
| 11 | 13 11 2 343 384 | HEX NUT | 1 | |
| 12 | 13 11 2 343 383 | SPRING WASHER | 1 | |
| 13 | 13 11 2 343 382 | LEVER | 1 | |
| 14 | 13 11 2 343 387 | SPRING | 1 | |
| 15 | 13 11 2 343 406 | CABLE ADJUSTER | 1 | |
| 16 | 13 11 2 343 405 | SPRING | 1 | |
| 17 | 13 11 2 343 400 | WASHER | 1 |
