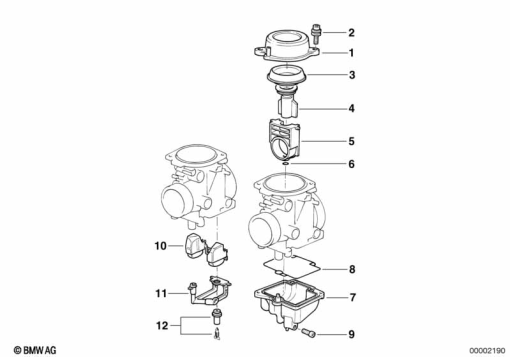

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 11 2 343 376 | COVER | - | |
| 2 | 13 11 2 343 414 | FILLISTER HEAD SCREW | - | |
| 3 | 13 11 2 343 379 | DIAPHRAGM | - | |
| 4 | 13 11 2 343 378 | PISTON | - | |
| 5 | 13 11 2 343 374 | CARRIER | - | |
| 6 | 13 11 2 343 393 | O-RING | - | |
| 7 | 13 11 2 343 399 | FLOAT CHAMBER | - | |
| 8 | 13 11 2 343 392 | GASKET | - | |
| 9 | 13 11 2 343 386 | SCREW | - | |
| 10 | 13 11 2 343 394 | FLOAT | - | |
| 11 | 13 11 2 343 403 | FLOAT BRACKET WITH JET | - | |
13 11 2 343 404 | BRACKET RIGHTAlternative for position 11 | - | ||
| 12 | 13 11 2 343 398 | FLOAT VALVE ASSY | - |
