F650 Funduro (E169) | Fuel Preparation

INTAKE SILENCER / FILTER CARTRIDGE INTAKE SILENCER / FILTER CART

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

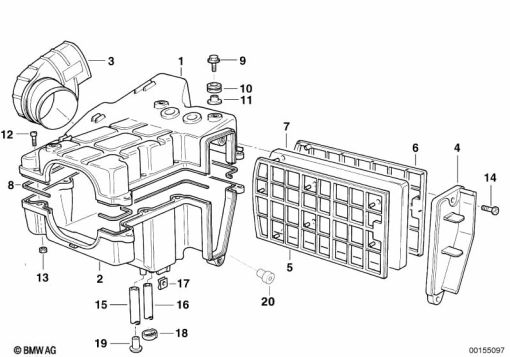

Diagram #13_0532 | 23 parts

100%

Parts List (23)

#	Part Number	Description	Qty
1	13 71 2 345 143	AIR CLEANER HOUSING TOP - 80 DB	-
2	13 71 2 345 101	AIR CLEANER HOUSING BOTTOM - SLS	-
	13 71 2 345 011	AIR CLEANER HOUSING BOTTOMAlternative for position 2	-
-	13 71 2 345 029	INSERT - M6	-
3	13 71 2 345 013	SUCTION TUBE	-
4	13 71 2 345 012	COVER	-
5	13 72 2 345 018	BRACKET FRONT	-
6	13 72 2 345 019	BRACKET REAR	-
7	13 72 2 345 027	AIR FILTER ELEMENT	-
8	13 71 2 345 028	GASKET - 750MM	-
9	13 71 2 343 300	HEX BOLT - M6X20	-
10	13 71 2 345 030	RUBBER GROMMET	-
11	13 71 2 345 031	BUSH	-
12	13 71 2 345 044	SCREW - M5X20	-
13	52 53 7 655 579	SELF-LOCKING HEX NUT - M5-A2	-
14	13 71 2 343 300	HEX BOLT - M6X20	-
15	16 12 2 345 065	HOSE - 7,5X13 (meter)	-
16	13 71 2 345 164	HOSE - 5,5X10X1500	-
	16 11 1 342 049	HOSE RUNNING METER - Ø 8X4,5 (meter)Alternative for position 16	-
17	17 11 2 345 061	BODY NUT - M6	-
18	17 11 2 345 070	HOSE CLAMP - D=10	-
19	13 71 2 343 319	BLIND PLUG	-
20	13 71 2 345 029	INSERT - M6	-
