F650ST (E169) | Fuel Supply

FUEL TANK MOUNTIG

Diagram #16_0333 | 6 parts

100%

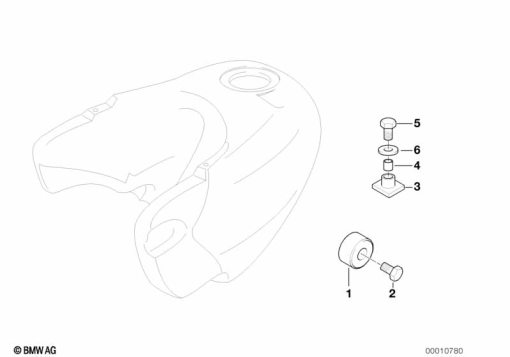

F650ST (E169) FUEL TANK MOUNTIG exploded view parts diagram

Parts List (6)

#Part NumberDescriptionQty
1
16 11 2 346 031
RUBBER GROMMET-
2
16 11 2 345 080
SCREW - M8X10-
3
16 11 2 346 032
RUBBER GROMMET-
4
16 11 2 346 033
BUSH-
5
16 11 2 345 535
HEX BOLT - M8X40-
6
07 11 9 904 164
WASHER - 8,4X24X2-ZNS3-
