F650ST (E169) | Fuel Supply

FUEL TANK TRIM PANEL

Diagram #16_0265 | 7 parts

100%

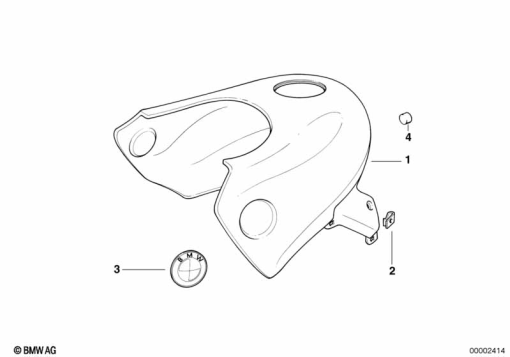

F650ST (E169) FUEL TANK TRIM PANEL exploded view parts diagram

Parts List (7)

#Part NumberDescriptionQty
1
46 63 2 346 262
TRIM PANEL1
1
46 63 2 346 263
TRIM PANEL1
1
46 63 2 346 264
TRIM PANEL1
1
46 63 2 346 272
TRIM PANEL1
2
16 11 2 345 079
BODY NUT - M51
3
46 63 7 686 746
BADGE - D=70MM1
4
16 11 2 346 150
PUSHROD SEAL1
