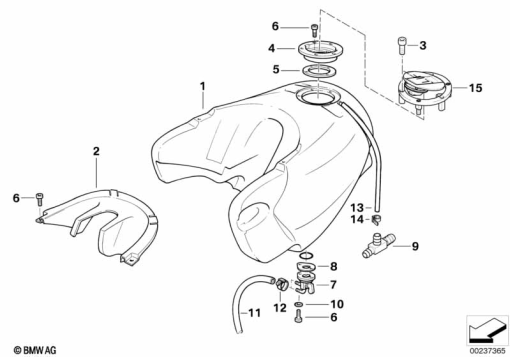

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 2 328 488 | FUEL TANK | - | |
| 2 | 16 11 2 346 013 | FRONT BLACK TRIM PANEL | - | |
| 3 | 16 11 2 346 177 | FILLISTER-HEAD SCREW - M5X30 A2-70 | - | |
16 11 2 346 178 | FILLISTER-HEAD SCREW - M5X16 A2-70Alternative for position 3 | - | ||
| 4 | 16 11 2 328 475 | FILLER TUBE - D=23,5 MM | - | |
16 11 2 346 170 | FILLER TUBE - D=28 MMAlternative for position 4 | - | ||
| 5 | 16 11 2 328 477 | GASKET | - | |
| 6 | 12 13 2 345 541 | HEXAGON SCREW WITH FLANGE - M6X16 | - | |
16 11 2 345 083 | SCREW - M6X15-8.8 ZNSAlternative for position 6 | - | ||
| 7 | 16 11 2 345 127 | FUEL TAP | - | |
| 8 | 11 31 7 690 476 | O-RING - 23,4X3,53 | - | |
| 9 | 16 11 2 345 692 | NIPPLE | - | |
| 10 | 16 11 2 345 085 | WAVE WASHER - 6,4X11X0,5 | - | |
| 11 | 16 12 2 345 065 | HOSE - 7,5X13 (meter) | - | |
| 12 | 16 11 2 345 077 | CLAMP - 11,9 | - | |
| 13 | 13 71 2 345 164 | HOSE - 5,5X10X1500 | - | |
16 11 1 342 049 | HOSE RUNNING METER - Ø 8X4,5 (meter)Alternative for position 13 | - | ||
| 14 | 16 11 2 345 078 | CLAMP - 9,1 | - | |
| 15 | 16 11 2 346 374 | FILLER CAP | - | |
| 16 | 16 11 2 345 108 | FUEL TAP GASKET SET | - |
