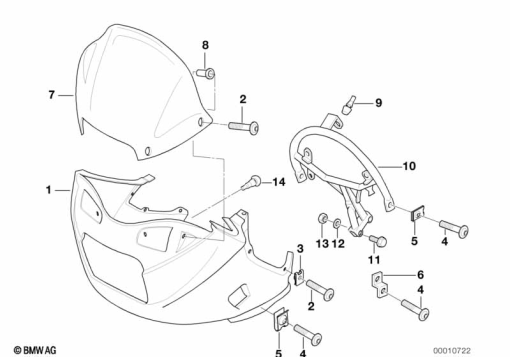

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 346 283 | TRIM PANEL UPPER PART - FLAMMROT | 1 | |
| 1 | 46 63 2 346 285 | TRIM PANEL UPPER PART - AURAWHITE | 1 | |
| 1 | 46 63 2 346 287 | TRIM PANEL UPPER PART - ORLANDOORANGE | 1 | |
| 1 | 46 63 2 346 288 | TRIM PANEL UPPER PART - MIDNIGHTBLUE | 1 | |
| 2 | 35 21 7 708 764 | COUNTERSUNK SCREW - M5X20 | 1 | |
| 3 | 16 11 2 345 079 | BODY NUT - M5 | 1 | |
| 4 | 18 11 2 345 087 | FLANGE SCREW - M6X16 | 1 | |
| 5 | 17 11 2 345 061 | BODY NUT - M6 | 1 | |
| 6 | 46 63 2 346 267 | HEADLIGHT BRACKET | 1 | |
| 7 | 46 63 2 346 311 | COCKPIT TRIM PANEL - BLACK | 1 | |
| 8 | 46 63 2 345 091 | RUBBER MOUNTING - M5 | 1 | |
| 10 | 46 63 2 346 327 | FAIRING BRACKET - BLACK | 1 | |
| 11 | 13 71 2 345 540 | HEX BOLT - M6X30 | 1 | |
| 12 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 13 | 63 14 2 346 469 | HEX NUT - M6 | 1 | |
| 14 | 16 11 2 346 150 | PUSHROD SEAL | 1 |
