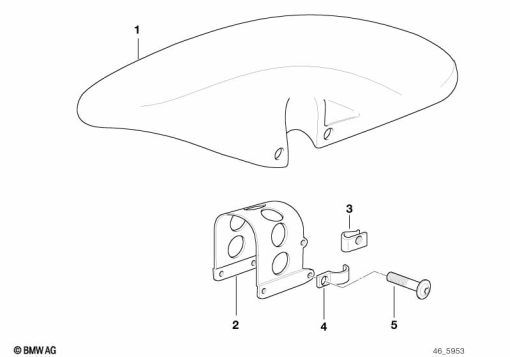

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 2 346 173 | FRONT WHEEL FENDER - FLAMMROT | - | |
46 61 2 346 268 | FRONT WHEEL FENDER - BLUEAlternative for position 1 | - | ||
46 61 2 346 269 | FRONT WHEEL FENDER - ORLANDOORANGEAlternative for position 1 | - | ||
46 61 2 346 270 | FRONT WHEEL FENDER - WHITEAlternative for position 1 | - | ||
| 2 | 46 61 2 346 266 | REINFORCEMENT | - | |
| 3 | 16 11 2 345 079 | BODY NUT - M5 | - | |
| 4 | 46 61 2 346 265 | 0.02 | - | |
| 5 | 18 11 2 345 087 | FLANGE SCREW - M6X16 | - |
