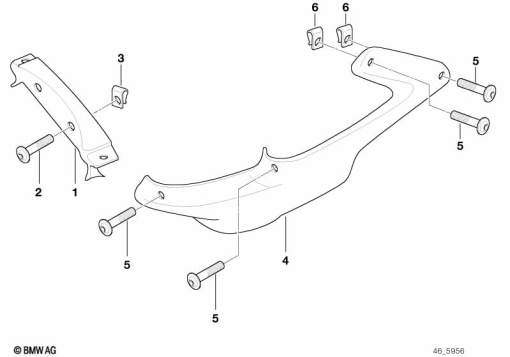

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 346 296 | RADIOTOR TRIM PANEL CENTER - ALUMINIUM | - | |
| 2 | 18 11 2 345 087 | FLANGE SCREW - M6X16 | - | |
| 3 | 17 11 2 345 061 | BODY NUT - M6 | - | |
| 4 | 46 63 2 346 299 | TRIM PANEL LEFT - ALUMINIUM | - | |
46 63 2 346 300 | TRIM PANEL RIGHT - ALUMINIUMAlternative for position 4 | - | ||
| 5 | 46 62 2 345 490 | SCREW - M5X16 | - | |
| 6 | 16 11 2 345 079 | BODY NUT - M5 | - |
