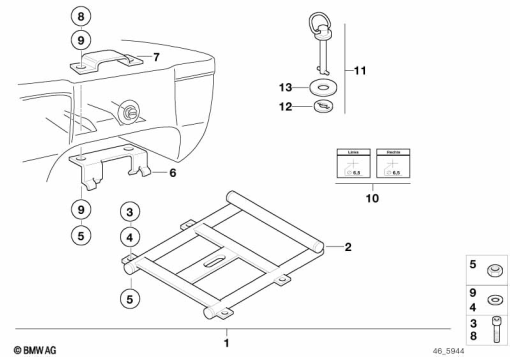

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 316 756 | SET: SET OF MOUNTING PARTS F TOPCASE | - | |
| 2 | 46 54 2 316 553 | ADAPTER | - | |
| 3 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | - | |
07 12 9 905 386 | ISA SCREW - M6X30-8.8-ZNNIVAlternative for position 3 | - | ||
| 4 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 5 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | - | |
| 6 | 46 54 2 316 597 | SUPPORT | - | |
| 7 | 46 54 2 316 592 | REINFORCEMENT | - | |
| 8 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | - | |
| 9 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 | - | |
| 10 | 46 54 2 316 757 | TEMPLATE | - | |
| 11 | 46 54 2 316 599 | SCREW PLUG | - | |
| 12 | 46 54 2 300 447 | WASHER | - | |
| 13 | 07 11 9 936 442 | WASHER - 13-140 HV-ZN | - |
