F650ST (E169) | Engine

WRISTPIN / PISTON RING

Diagram #11_1866 | 3 parts

100%

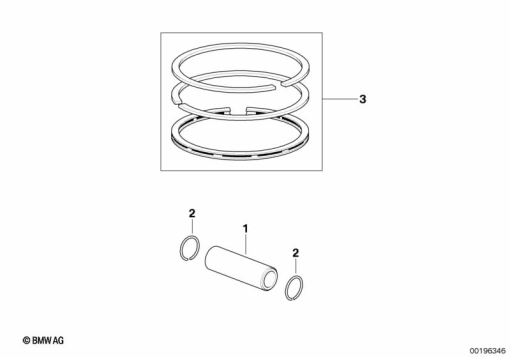

F650ST (E169) WRISTPIN / PISTON RING exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
11 25 7 675 304
GUDGEON PIN - D22X18X68.71
2
11 25 2 343 445
RING - 221
3
11 25 2 343 266
SET: REPAIR KIT PISTON RINGS1
