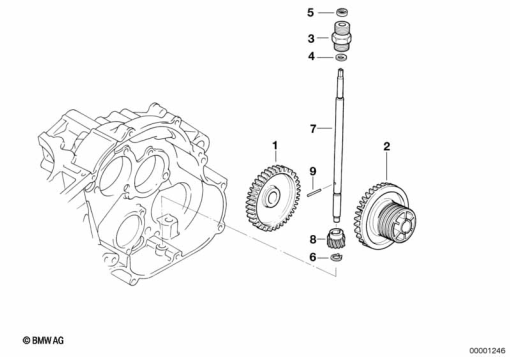

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 41 2 343 110 | GEAR WHEEL - 31 Z | - | |
| 2 | 11 41 2 343 112 | GEAR WHEEL - 15/31 Z | - | |
| 3 | 62 13 2 343 220 | HOLLOW BOLT | - | |
| 4 | 23 00 2 343 261 | WASHER - 6,2X12X1 | - | |
| 5 | 62 13 2 343 221 | SHAFT SEAL - 6X11X4,5 | - | |
| 6 | 62 13 2 343 222 | CIRCLIP | - | |
| 7 | 62 13 2 343 218 | DRIVE SHAFT | - | |
| 8 | 62 13 2 343 217 | HELICAL GEAR WHEEL | - | |
| 9 | 62 13 2 343 219 | ROLL PIN - 2X11,8 | - |
