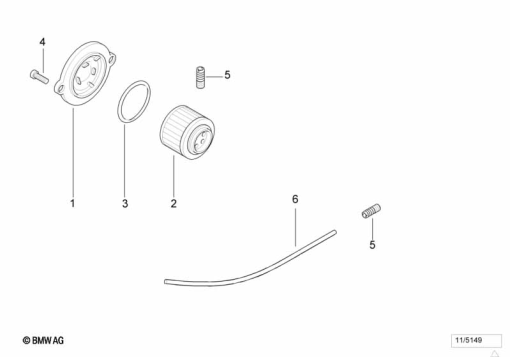

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 41 2 343 119 | OIL FILTER COVER | - | |
| 2 | 11 00 2 317 015 | REPAIR SET INSPECTION | - | |
11 41 2 343 118 | OIL FILTER INSERTAlternative for position 2 | - | ||
| 3 | 11 41 7 654 013 | O-RING - 59,52X2,62 | - | |
| 4 | 07 12 9 901 130 | ISA SCREW - M6X20-8.8-ZNNIV | - | |
| 5 | 11 41 2 343 120 | NIPPLE | - | |
| 6 | 11 41 2 345 165 | HOSE - 10X18X1600 | - | |
| 7 | 11 41 2 345 067 | HOSE CLAMP - 17,5X8,6 | - | |
| 8 | 12 63 7 670 015 | OIL PRESSURE SWITCH - M10X1 | - |
