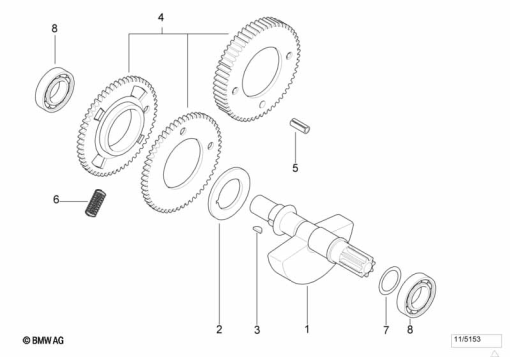

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 27 2 343 483 | COMPENSATING SHAFT | - | |
| 2 | 11 27 2 343 289 | STOP DISK - 24,3X41X1,5 | - | |
| 3 | 11 27 2 343 243 | WOODRUFF KEY - 4X5 | - | |
| 4 | 11 27 2 343 449 | GEAR SET | - | |
| 5 | 11 27 2 343 244 | CLAMPING BUSH - 8X24 | - | |
| 6 | 11 27 2 343 077 | COMPRESSION SPRING | - | |
| 7 | 11 27 2 343 078 | SHIM - 20,2X41X0,8 | - | |
11 27 2 343 079 | SHIM - 20,2X41X1Alternative for position 7 | - | ||
11 27 2 343 080 | SHIM - 20,2X41X1,2Alternative for position 7 | - | ||
11 27 2 343 332 | SHIM - 20,2X41X1,4Alternative for position 7 | - | ||
| 8 | 11 11 7 704 640 | GROOVED BALL BEARING - 52X20X15 | - |
