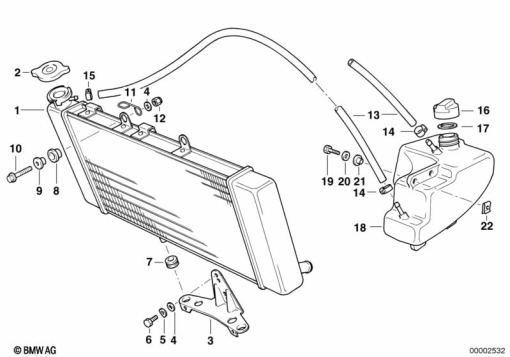

Parts List (24)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 11 2 345 046 | RADIATOR | - | |
| 2 | 17 11 2 345 074 | RADIATOR CAP | - | |
| 3 | 17 11 2 345 052 | BRACKET LOWER | - | |
| 4 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 4 | - | ||
| 5 | 63 14 2 346 468 | WASHER - 6,6X18X1,6 | - | |
| 6 | 31 42 7 708 941 | COLLAR SCREW - M6 | - | |
| 7 | 17 11 2 345 055 | RUBBER MOUNTING | - | |
| 8 | 17 11 2 345 053 | RUBBER MOUNTING | - | |
| 9 | 17 11 2 345 054 | BUSH | - | |
| 10 | 13 71 2 345 540 | HEX BOLT - M6X30 | - | |
| 11 | 17 11 2 345 071 | GUIDE | - | |
| 12 | 63 14 2 346 469 | HEX NUT - M6 | - | |
| 13 | 13 71 2 345 164 | HOSE - 5,5X10X1500 | - | |
16 11 1 342 049 | HOSE RUNNING METER - Ø 8X4,5 (meter)Alternative for position 13 | - | ||
| 14 | 17 11 2 345 069 | HOSE CLAMP - D=11 | - | |
| 15 | 17 11 2 345 070 | HOSE CLAMP - D=10 | - | |
| 16 | 17 11 2 345 056 | LOCK | - | |
| 17 | 17 11 2 345 057 | GASKET | - | |
| 18 | 17 11 2 345 015 | EXPANSION TANK | - | |
| 19 | 13 71 2 343 300 | HEX BOLT - M6X20 | - | |
| 20 | 63 14 2 346 468 | WASHER - 6,6X18X1,6 | - | |
| 21 | 17 11 2 345 058 | BUSH | - | |
| 22 | 17 11 2 345 061 | BODY NUT - M6 | - |
