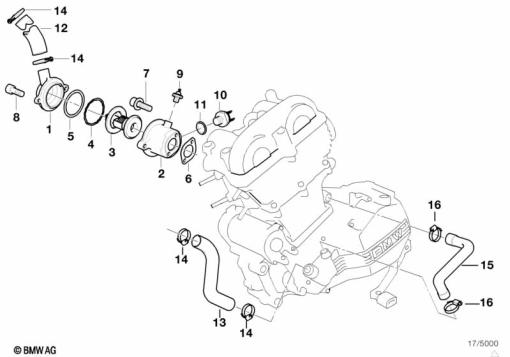

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 53 2 343 271 | COVER | 1 | |
| 2 | 11 53 2 343 268 | THERMOSTAT HOUSING | 1 | |
| 3 | 11 53 2 343 480 | THERMOSTAT | 1 | |
| 4 | 11 53 2 343 272 | SHIM | 1 | |
| 5 | 11 53 2 345 073 | O-RING - 43X2,5 | 1 | |
| 6 | 11 53 2 343 270 | GASKET | 1 | |
| 7 | 07 12 9 905 121 | ISA SCREW - M5X20-U1-8.8 | 1 | |
| 8 | 07 11 9 900 311 | FILLISTER-HEAD SCREW - M5X16-8.8-ZNS | 1 | |
| 9 | 11 53 2 343 468 | TEMPERATURE SENSOR - M10X1 | 1 | |
| 10 | 11 53 8 546 113 | TEMPERATURE SWITCH - M14X1,5 | 1 | |
| 11 | 11 53 2 343 293 | GASKET RING - A14X18 | 1 | |
| 12 | 17 12 2 345 047 | WATER HOSE | 1 | |
| 13 | 17 12 2 345 048 | WATER HOSE | 1 | |
| 14 | 17 12 2 345 558 | HOSE CLAMP - 23,5X8 | 1 | |
| 15 | 11 51 2 343 130 | WATER HOSE | 1 | |
| 16 | 64 21 8 367 179 | HOSE CLAMP - L16-30 | 1 |
