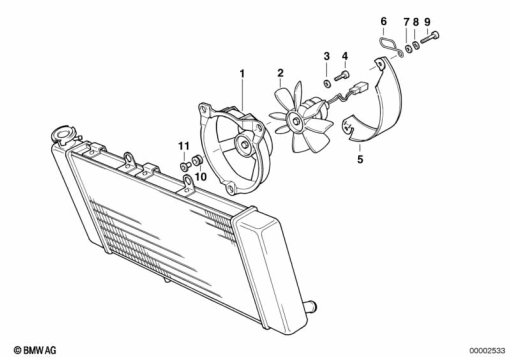

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 11 2 345 075 | HOUSING | - | |
| 2 | 17 40 2 345 099 | 0.53 | - | |
| 3 | 07 11 9 904 207 | WASHER - 4-200 HV-ZNS3 | - | |
| 4 | 07 11 9 906 112 | HEX BOLT - M4X10-8.8-ZNNIV | - | |
| 5 | 17 40 2 345 059 | PROTECTION PLATE | - | |
| 6 | 17 11 2 345 060 | GUIDE | - | |
| 7 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 8 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 08/90)Alternative for position 8 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 8 | - | ||
07 11 9 904 446 | WASHER - 5-200 HV-ZNNIVAlternative for position 8 | - | ||
| 9 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | - | |
| 10 | 17 40 2 345 050 | RUBBER GROMMET | - | |
| 11 | 17 40 2 345 049 | BUSH | - |
