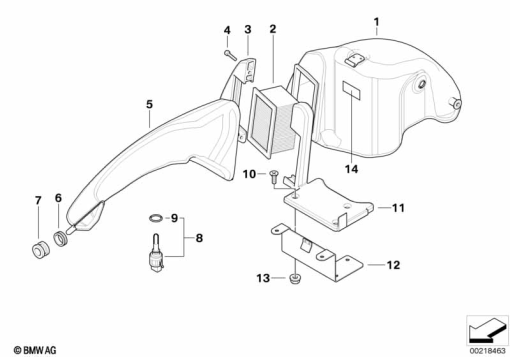

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 71 7 658 930 | AIR CLEANER HOUSING | - | |
| 2 | 13 71 8 534 200 | AIR FILTER ELEMENT | - | |
| 3 | 13 71 2 343 579 | FLANGE | - | |
| 4 | 13 71 7 655 911 | HEX BOLT | - | |
| 5 | 13 71 7 658 931 | INTAKE MANIFOLD | - | |
| 6 | 46 63 1 451 278 | INSERT | - | |
| 7 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| 10 | 07 11 9 900 892 | COUNTERSUNK HEAD SCREW - M6X25-8.8-ZNS | - | |
| 11 | 13 71 2 343 578 | BATTERY TRAY | - | |
| 12 | 13 71 2 343 567 | BATTERY HOLD DOWN | - | |
| 13 | 07 12 9 904 896 | WELDING NUT - M6 | - | |
| 14 | 13 71 7 655 890 | ANTI-SCUFFING | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
