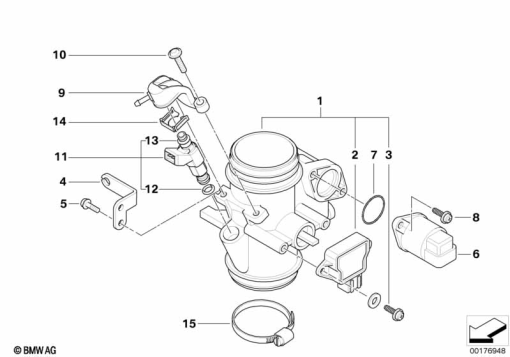

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 54 7 659 059 | THROTTLE HOUSING WITH POTENTIOMETER - US | - | |
| - | 32 73 7 660 040 | THROTTLE CABLE - L=1047MM | - | |
| 2 | 13 63 1 436 000 | THROTTLE VALVE SWITCH | - | |
| 3 | 07 11 9 902 162 | FILLISTER-HEAD SCREW - M4X12 | - | |
| 4 | 13 54 7 654 888 | BRACKET FOR ACCELERATOR BOWDEN CABLE | - | |
| 5 | 13 54 7 655 405 | TORX BOLT - M5X14 | - | |
| 6 | 13 53 2 345 868 | IDLE CONTROL DEVICE | - | |
| 7 | 13 54 7 654 909 | O-RING | - | |
| 8 | 07 12 9 902 329 | ISA SCREW WITH WASHER - M5X16-Z1-ZNS | - | |
| 9 | 13 53 7 654 962 | INJECTION NOZZLE SUPPORT | - | |
| 10 | 07 12 9 905 121 | ISA SCREW - M5X20-U1-8.8 | - | |
| 11 | 13 71 1 342 366 | INJECTION VALVE | - | |
| 12 | 13 64 1 437 476 | O-RING - 7,52X3,51 | - | |
| 14 | 13 53 1 341 697 | SPRING CLIP | - | |
| 15 | 13 72 7 654 865 | HOSE CLAMP - D=64 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
