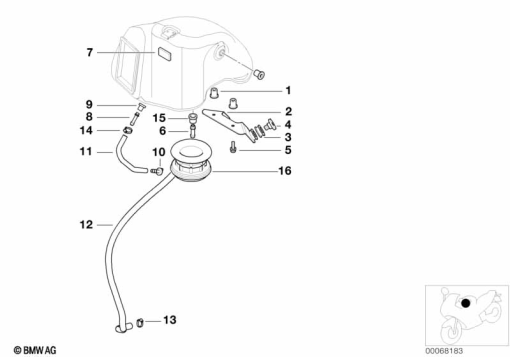

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 71 7 655 848 | BLIND RIVET NUT, FLAT HEADED - M6 | 1 | |
| 2 | 13 71 2 343 568 | BRACKET. INTAKE SILENCER | 1 | |
| 3 | 13 71 2 343 569 | RUBBER GROMMET - 18X8MM | 1 | |
| 4 | 13 71 7 727 239 | MOUNTING SCREW | 1 | |
| 5 | 07 12 9 902 330 | ISA SCREW - M6X16-Z1 | 1 | |
| 6 | 13 71 7 650 219 | CONNECTOR - M8 | 1 | |
| 7 | 13 71 7 655 890 | ANTI-SCUFFING | 1 | |
| 8 | 13 71 7 650 220 | CONNECTOR - M6 | 1 | |
| 9 | 51 45 8 244 970 | BLIND RIVET NUT WITH COLLAR - M6 | 1 | |
| 10 | 13 71 7 650 224 | PLUG | 1 | |
| 11 | 13 71 7 650 218 | CONDENSATION WATER OUTLET HOSE | 1 | |
| 12 | 16 12 1 180 409 | FUEL HOSE - 8X13MM (meter) | 1 | |
| 13 | 13 71 7 655 875 | HOSE CLAMP - 12,5-14,5MM | 1 | |
| 14 | 13 53 7 795 244 | HOSE CLAMP - 8,3-10 | 1 | |
| 15 | 65 10 6 905 660 | BLIND RIVET NUT, INSULATING - M8 | 1 | |
| 16 | 13 71 2 343 566 | INTAKE TUBE | 1 |
