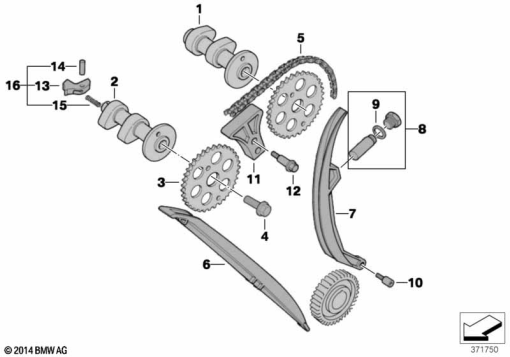

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 31 7 650 977 | INLET CAMSHAFT | - | |
| 2 | 11 31 7 650 978 | CAMSHAFT EXHAUST | - | |
| 3 | 11 31 7 700 262 | CAMSHAFT SPROCKET - 32 Z | - | |
| 4 | 11 31 7 654 011 | TORX SCREW - M10X30 | - | |
11 11 7 700 258 | TORX SCREW - M10X30Alternative for position 4 | - | ||
| 5 | 11 31 2 343 084 | TIMING CHAIN | - | |
| 6 | 11 31 7 652 907 | GUIDE RAIL | - | |
| 7 | 11 31 7 652 906 | CHAIN TENSIONER | - | |
| 8 | 11 31 7 710 986 | CHAIN TENSIONER/BOLT/SEAL RING - M18X1,5X9 | - | |
| 9 | 11 31 2 343 091 | GASKET RING - 18,2X24X1 | - | |
| 10 | 11 31 7 676 592 | BEARING SCREW - M6X31-MK | - | |
| 11 | 11 31 7 652 908 | 0.04 | - | |
| 12 | 11 31 2 343 089 | SPACER BOLT - M6X16 | - | |
| 13 | 11 31 7 652 894 | BALANCE WEIGHT | - | |
| 14 | 11 31 2 343 096 | ROLL PIN - 5X23,8 | - | |
| 15 | 11 31 2 343 097 | COMPRESSION SPRING | - |
