F650GS 01-04 (R13) | Engine

TIMING GEAR - INTAKE VALVE/EXHAUST VALVE

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #11_2937 | 29 parts

100%

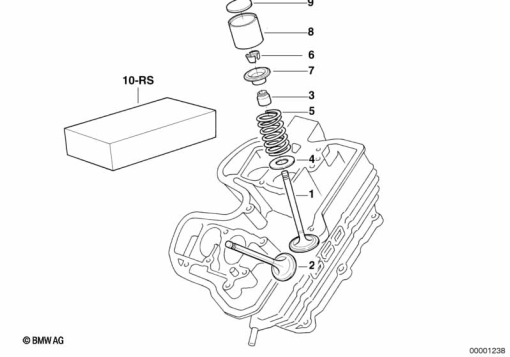

F650GS 01-04 (R13) TIMING GEAR - INTAKE VALVE/EXHAUST VALVE exploded view parts diagram

Parts List (29)

#	Part Number	Description	Qty
1	11 34 7 706 501	INTAKE VALVE - D=36MM	-
2	11 34 7 706 502	EXHAUST VALVE - D=31MM	-
3	11 34 1 340 849	VALVE SEAL RING - D=5	-
4	11 34 7 652 926	LOWER SPRING PLATE	-
5	11 34 7 652 913	VALVE SPRING	-
6	11 34 7 652 969	VALVE COLLET	-
7	11 34 7 652 893	SPRING POCKET	-
8	11 32 1 460 144	CAM FOLLOWER	-
9	11 32 1 460 147	ADJUSTMENT PLATE - 2.00	-
	11 32 1 460 148	ADJUSTMENT PLATE - 2.05Alternative for position 9	-
	11 32 1 460 149	ADJUSTING PLATE - 2.10Alternative for position 9	-
	11 32 1 460 150	ADJUSTING PLATE - 2.15Alternative for position 9	-
	11 32 1 460 151	ADJUSTING PLATE - 2.20Alternative for position 9	-
	11 32 1 460 152	ADJUSTING PLATE - 2.25Alternative for position 9	-
	11 32 1 460 153	ADJUSTING PLATE - 2.30Alternative for position 9	-
	11 32 1 460 154	ADJUSTING PLATE - 2.35Alternative for position 9	-
	11 32 1 460 155	ADJUSTING PLATE - 2.40Alternative for position 9	-
	11 32 1 460 156	ADJUSTING PLATE - 2.45Alternative for position 9	-
	11 32 1 460 157	ADJUSTING PLATE - 2.50Alternative for position 9	-
	11 32 1 460 158	ADJUSTING PLATE - 2.55Alternative for position 9	-
	11 32 1 460 159	ADJUSTING PLATE - 2.60Alternative for position 9	-
	11 32 1 460 160	ADJUSTING PLATE - 2.65Alternative for position 9	-
	11 32 1 460 161	ADJUSTING PLATE - 2.70Alternative for position 9	-
	11 32 1 460 162	ADJUSTING PLATE - 2.75Alternative for position 9	-
	11 32 1 460 163	ADJUSTING PLATE - 2.80Alternative for position 9	-
	11 32 1 460 164	ADJUSTING PLATE - 2.85Alternative for position 9	-
	11 32 1 460 165	ADJUSTING PLATE - 2.90Alternative for position 9	-
	11 32 1 460 166	ADJUSTING PLATE - 2.95Alternative for position 9	-
	11 32 1 460 167	ADJUSTING PLATE - 3.00Alternative for position 9	-
