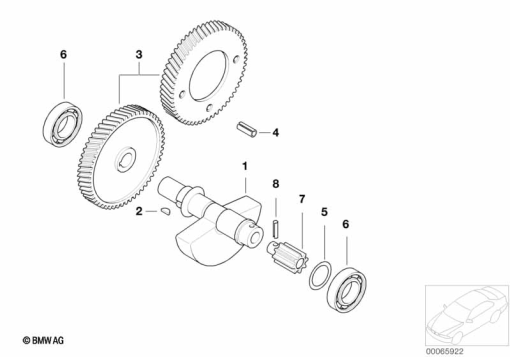

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 27 7 652 981 | COMPENSATING SHAFT | - | |
| 2 | 11 27 2 343 243 | WOODRUFF KEY - 4X5 | - | |
| 3 | 11 27 7 652 965 | GEAR SET | - | |
| 4 | 11 27 2 343 244 | CLAMPING BUSH - 8X24 | - | |
| 5 | 11 27 2 343 078 | SHIM - 20,2X41X0,8 | - | |
11 27 2 343 079 | SHIM - 20,2X41X1Alternative for position 5 | - | ||
11 27 2 343 080 | SHIM - 20,2X41X1,2Alternative for position 5 | - | ||
11 27 2 343 332 | SHIM - 20,2X41X1,4Alternative for position 5 | - | ||
| 6 | 11 11 7 704 640 | GROOVED BALL BEARING - 52X20X15 | - | |
| 7 | 11 51 7 652 905 | PINION - 15 Z | - | |
| 8 | 11 51 2 343 127 | ROLL PIN - 4X19,8 | - |
