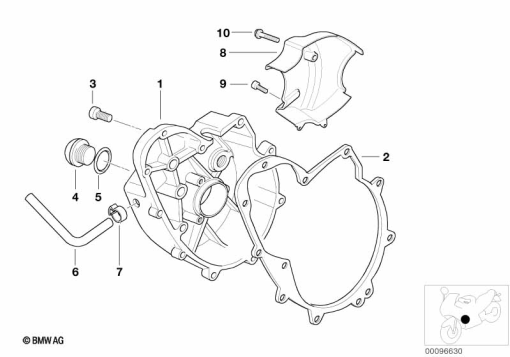

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 14 7 685 489 | MOTOR HOUSING COVER, SILVER, RIGHT | 1 | |
| 2 | 11 14 7 706 500 | GASKET RIGHT | 1 | |
| 3 | 11 11 7 706 514 | HEXAGON BOLT WITH INSIDE TORX - M6X30-8.8 | 1 | |
| 4 | 11 14 2 343 044 | SCREW PLUG - M18X1,5 | 1 | |
| 5 | 11 14 2 343 241 | O-RING - 17X1,5 | 1 | |
| 6 | 16 12 1 180 409 | FUEL HOSE - 8X13MM (meter) | 1 | |
| 7 | 13 71 7 655 875 | HOSE CLAMP - 12,5-14,5MM | 1 | |
| 8 | 11 14 7 659 940 | COVER, PULLEY, SILVER | 1 | |
| 8 | 11 14 7 665 357 | CHAIN GUARD, BLACK | 1 | |
| 9 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | 1 |
