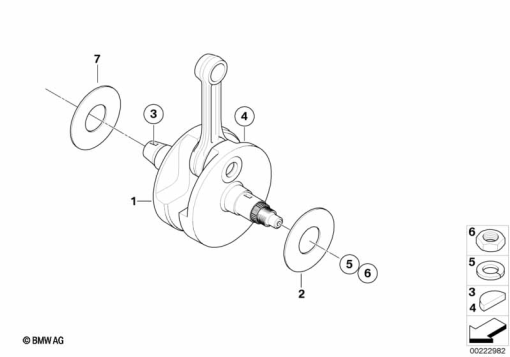

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 21 7 652 966 | CRANKSHAFT/CONNECTING ROD | - | |
| 2 | 11 21 7 652 931 | SHIM - 46/69/1 | - | |
11 21 7 652 932 | SHIM - 46/69/1,2Alternative for position 2 | - | ||
11 21 7 652 933 | SHIM - 46/69/1,4Alternative for position 2 | - | ||
11 21 7 652 934 | SHIM - 46/69/1,6Alternative for position 2 | - | ||
| 3 | 11 27 2 343 243 | WOODRUFF KEY - 4X5 | - | |
| 4 | 21 21 2 343 255 | WOODRUFF KEY - 6X9 | - | |
| 5 | 12 11 2 343 250 | LOCK RING - 22 | - | |
| 6 | 12 31 7 700 301 | HEX NUT - M22X1,5 | - | |
| 7 | 11 21 7 652 931 | SHIM - 46/69/1 | - |
