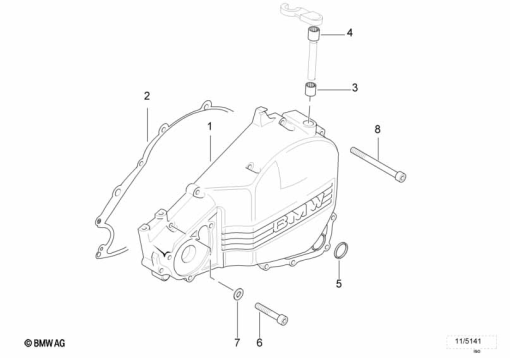

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 14 7 686 377 | MOTOR HOUSING COVER, SILVER, LEFT | - | |
| 2 | 11 14 7 706 498 | GASKET | - | |
| 3 | 11 14 2 343 036 | NEEDLE SLEEVE - 8X12X8 | - | |
| 4 | 11 14 2 343 037 | NEEDLE SLEEVE - 12X16X10 | - | |
21 21 7 700 120 | NEEDLE SLEEVE - 12X16X10Alternative for position 4 | - | ||
| 5 | 11 14 2 343 038 | SHAFT SEAL - 12X28X7 | - | |
| 6 | 11 11 7 706 514 | HEXAGON BOLT WITH INSIDE TORX - M6X30-8.8 | - | |
| 7 | 11 14 2 343 240 | GASKET RING - A6X10 | - | |
| 8 | 11 11 7 706 512 | TORX BOLT - M6X75 | - |
