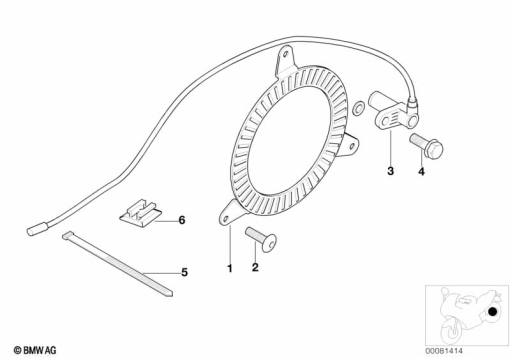

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 51 2 345 810 | SENSOR RING, REAR | 1 | |
| 2 | 07 11 9 906 809 | COUNTERSUNK SCREW - M5X10-10.9 ZNS3 | 1 | |
| 3 | 34 52 2 345 845 | ROTATIONAL-SPEED SENSOR, REAR - ABS/DF10 (to 08/01) | 1 | |
| 3 | 34 52 7 665 743 | ROTATIONAL-SPEED SENSOR, REAR - ABS/DF11/DF10 (from 09/01) | 1 | |
| 4 | 07 11 9 904 125 | HEXAGON SCREW WITH FLANGE - M6X12-8.8-ZNS3 | 1 | |
| 5 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 6 | 61 13 8 365 536 | BRACKET, PLUG CONNECTION GRAY | 1 | |
| 7 | 34 52 7 657 910 | REINFORCEMENT | 1 |
