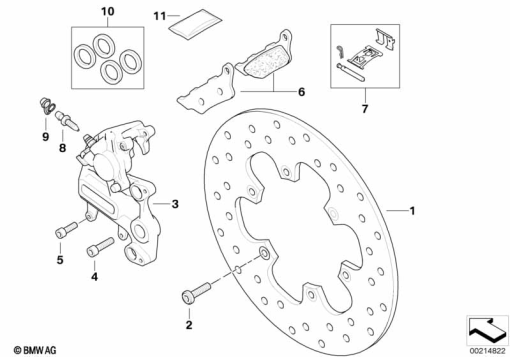

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 21 2 345 314 | REAR BRAKE DISC - D=240MM | - | |
| 2 | 36 31 7 671 267 | FILLISTER-HEAD SCREW - M6X20-8.8-MK | - | |
| 3 | 34 11 2 345 856 | BRAKE CALIPER, REAR - D=34 | - | |
| 5 | 07 12 9 903 801 | ISA SCREW - M10X40-8.8-ZNS3 | - | |
| 6 | 34 21 7 664 983 | SET: BRAKE PADS KIT | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 6 | - | ||
| - | 34 21 8 529 920 | SET: KIT, ATTACHMENT PARTS, BRAKE LINING | - | |
| 7 | 34 21 8 529 920 | SET: KIT, ATTACHMENT PARTS, BRAKE LINING | - | |
| 8 | 34 21 1 236 793 | VENT SCREW - M10X1-ZN | - | |
| 9 | 34 21 1 236 794 | DUST CAP | - | |
| 10 | 34 21 7 651 957 | SET: SET OF BRAKE CALIPER PISTON SEALS | - | |
| 11 | 83 19 2 240 251 | LUBRICANT, SILICONE - 50G | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
