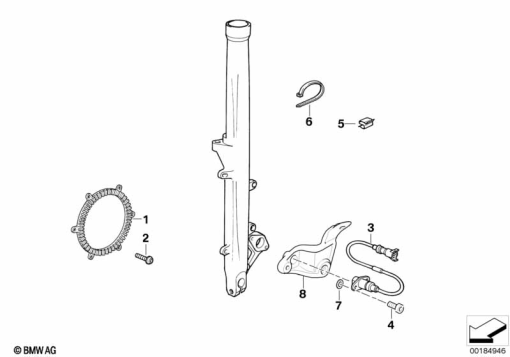

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 51 2 345 822 | SENSOR RING ABS, FRONT | 1 | |
| 2 | 07 11 9 919 713 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNS | 1 | |
| 3 | 34 52 7 665 742 | FRONT WHEELSPEED SENSOR - ABS/DF11/DF10 | 1 | |
| 3 | 34 52 7 665 742 | FRONT WHEELSPEED SENSOR - ABS/DF11/DF10 (from 09/01) | 1 | |
| 4 | 07 11 9 904 125 | HEXAGON SCREW WITH FLANGE - M6X12-8.8-ZNS3 | 1 | |
| 5 | 07 14 7 566 122 | FIXING CLAMP - A=4,0 - 4,5MM | 1 | |
| 6 | 61 13 1 372 391 | CABLE TIE - L=100MM/B=2,5MM | 1 | |
| 7 | 34 52 7 657 910 | REINFORCEMENT | 1 |
