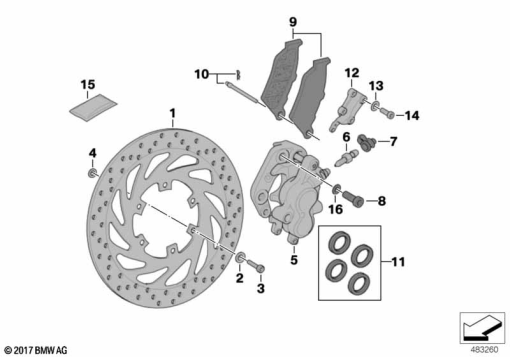

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 2 345 824 | BRAKE ROTOR, FRONT - D=300MM | - | |
36 31 2 345 823 | SPACER BUSHAlternative for position 1 | - | ||
| 6 | 34 11 7 661 879 | ANTI-SQUEAK ROTOR | - | |
| - | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 | - | |
| - | 36 31 7 671 267 | FILLISTER-HEAD SCREW - M6X20-8.8-MK | - | |
| - | 34 11 7 661 879 | ANTI-SQUEAK ROTOR | - | |
| - | 34 11 2 345 854 | BRAKE CALIPER, FRONT | - | |
| 6 | 34 21 2 330 310 | VENT SCREW - M10 | - | |
| 7 | 34 21 1 236 794 | DUST CAP | - | |
| 8 | 07 12 9 903 801 | ISA SCREW - M10X40-8.8-ZNS3 | - | |
| 9 | 34 11 7 651 958 | SET: SET OF BRAKE PADS FRONT | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 9 | - | ||
| 10 | 34 11 7 651 954 | SET: SET OF MOUNTING PARTS, LEFT | - | |
| 11 | 34 11 7 651 956 | SET: OF SEALS FOR BRAKE PISTON - D=30MM/32MM | - | |
| 15 | 83 19 2 240 251 | LUBRICANT, SILICONE - 50G | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
