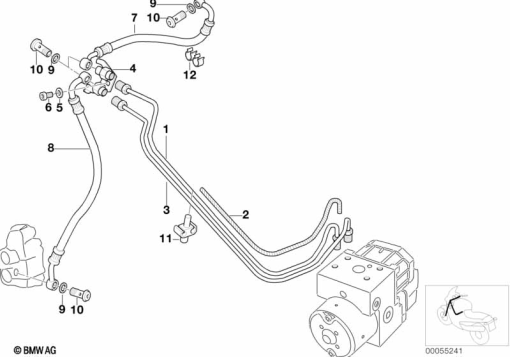

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 7 651 134 | FRONT BRAKE PIPE, INLET | - | |
| 2 | 34 32 2 310 078 | SPIRAL CONDUIT - L=1500MM | - | |
| 3 | 34 32 7 651 131 | BRAKE PIPE, OUTLET, FRONT | - | |
| 4 | 34 32 7 651 345 | DISTRIBUTOR, BRAKE PIPE - ABS | - | |
| 5 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 6 | 07 12 9 903 027 | ISA SCREW - M6X14 | - | |
| 7 | 34 32 7 651 462 | BRAKE HOSE FRONT - ABS | - | |
| 8 | 34 32 7 651 463 | BRAKE HOSE FRONT - ABS | - | |
| 9 | 34 11 7 671 550 | GASKET RING - A10X14-CU | - | |
| 10 | 34 32 2 331 540 | BANJO BOLT, BLACK - M10X1 | - | |
| 11 | 34 32 7 651 617 | BRAKE PIPE BRACKET | - | |
| 12 | 13 90 1 720 201 | HOSE CLAMP | - |
