Is the Chronoclassic 2 compatible with my non-fuel injected motorcycle?

Yes, but you will need an optional Motoscope Breakout Box (available as model 936577 or 936578 depending on your application). Fuel-injected motorcycles and CAN-bus compatible bikes work directly without additional hardware.

What happens to the LED display when I turn off the ignition?

When powered off, the display becomes invisible and only the black dial face is visible. This gives the gauge a completely classic, analog appearance with no visible digital elements—perfect for maintaining that vintage cafe racer aesthetic.

Can I adjust the shift light RPM threshold?

Yes, the shift light is fully adjustable from 0 to 20,000 RPM. You can customize it to your engine's optimal shift point using the button controls on the gauge itself.

How does the automatic brightness adjustment work?

The LED matrix includes automatic brightness adjustment that detects ambient light conditions. The display automatically reduces brightness in darkness to avoid eye strain and increases brightness in direct sunlight for optimal readability without manual intervention.

What warning indicators does the Chronoclassic 2 display?

The gauge features 11 indicator lights: immobilizer/alarm (Plug & Ride only), reserve fuel, oil/water temperature, engine control/MIL/ABS/ASR, oil pressure, left turn signal, right turn signal, high beam, neutral, and a universal warning light. All display as small indicator symbols on the dial.

What are the physical dimensions and will it fit in my motorcycle's dashboard?

The Chronoclassic 2 measures 80mm in diameter and just 22mm deep, making it extremely compact. This slim profile allows it to fit into most motorcycle dashboard spaces. Verify your available gauge opening diameter to ensure compatibility before ordering.

Does the gauge work with CAN-bus motorcycles?

Yes, the Chronoclassic 2 is fully compatible with CAN-bus vehicles. It can read all necessary data directly from your motorcycle's CAN-bus network without additional adapters for most modern fuel-injected bikes.

Can I customize which information appears on the two-line digital display?

Yes, the two-line LED display is customizable. The top line shows gear and speed/RPM by default, while the bottom line can be adjusted to show different parameters. You can change display values at the touch of a button to suit your preferences.

No image

Frequently Asked Questions

Motogadget — Chronoclassic 2 ''Speedo Face''. Polished bezel

Motogadget

LED 12V

624,41

incl. VAT

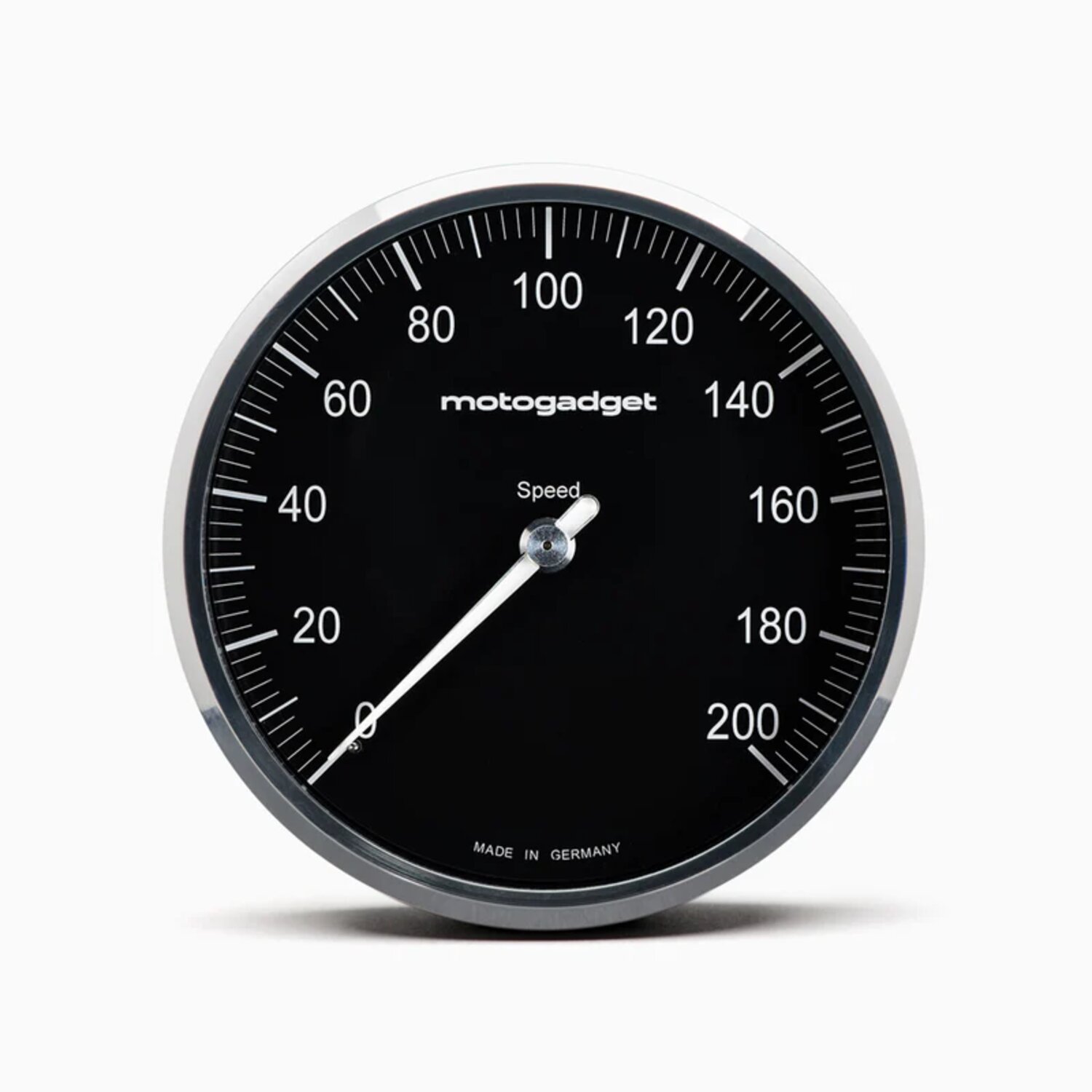

The Motogadget Chronoclassic 2 Speedo Face combines timeless analog design with modern digital technology. This universal speedometer features a classic large needle for speed indication paired with a cutting-edge 512-LED matrix display that shows RPM, gear, trip distance, and vital engine parameters in crisp red LEDs.

When powered off, the dial displays a pure black face for an authentic classic motorcycle aesthetic.

Perfect for custom cafe racers, classic BMW builds, and vintage-inspired motorcycles, this gauge delivers both style and functionality. The white illuminated pointer ensures excellent readability, while automatic brightness adjustment of the LED matrix adapts seamlessly from bright daylight to complete darkness.

An adjustable shift light (0-20,000 RPM) and comprehensive warning indicators keep you informed without compromising the classic look.

At just 80mm diameter and 22mm deep, the Chronoclassic 2 fits seamlessly into most motorcycle dashboard layouts. Compatible with CAN-bus vehicles and fuel-injected bikes, with optional Motoscope Breakout Box support for non-injected motorcycles. This is the ultimate gauge for riders who refuse to compromise between heritage aesthetics and modern performance monitoring.

Specifications

Technology: LED Matrix Display with Analog Needle
Diameter: 80mm
Depth: 22mm
Display Type: 512 Super-Bright Red LEDs
Speedometer Range: 0-999 km/h or mph
RPM Range: 0-20,000 RPM (adjustable shift light)
Pointer: White illuminated needle
Trip Computer: Trip A up to 999.9 km/mi
Gear Indicator: Yes
Warning Lights: 11 indicator functions (reserve, oil temperature, oil pressure, turn signals, high beam, neutral, ABS, ASR, MIL, alarm, immobilizer)
Compatible: CAN-bus vehicles, fuel-injected motorcycles, universal fitment
Optional: Motoscope Breakout Box A/B for non-injected applications
Backlight: Fully illuminated with automatic brightness adjustment
Fitment: Universal

When powered off, the dial displays a pure black face for an authentic classic motorcycle aesthetic.

An adjustable shift light (0-20,000 RPM) and comprehensive warning indicators keep you informed without compromising the classic look.

Specifications

Technology: LED Matrix Display with Analog Needle
Diameter: 80mm
Depth: 22mm
Display Type: 512 Super-Bright Red LEDs
Speedometer Range: 0-999 km/h or mph
RPM Range: 0-20,000 RPM (adjustable shift light)
Pointer: White illuminated needle
Trip Computer: Trip A up to 999.9 km/mi
Gear Indicator: Yes
Warning Lights: 11 indicator functions (reserve, oil temperature, oil pressure, turn signals, high beam, neutral, ABS, ASR, MIL, alarm, immobilizer)
Compatible: CAN-bus vehicles, fuel-injected motorcycles, universal fitment
Optional: Motoscope Breakout Box A/B for non-injected applications
Backlight: Fully illuminated with automatic brightness adjustment
Fitment: Universal
