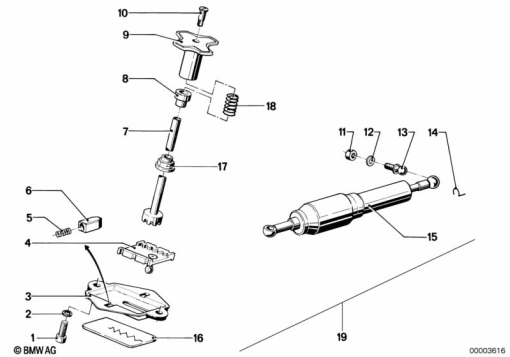

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 900 311 | FILLISTER-HEAD SCREW - M5X16-8.8-ZNS | - | |
| 2 | 07 11 9 933 222 | SPRING WASHER - 5-ZN | - | |
| 3 | 31 42 1 232 270 | HOUSING | - | |
| 4 | 31 42 1 232 274 | SLIDER | - | |
| 5 | 16 11 1 232 353 | COMPRESSION SPRING | - | |
| 6 | 31 42 1 232 350 | BOLT | - | |
| 7 | 31 42 1 232 275 | GEAR WHEEL | - | |
| 8 | 31 42 1 232 556 | BUSH | - | |
| 9 | 31 42 1 236 892 | HANDWHEEL | - | |
| 10 | 07 11 9 928 103 | COUNTERSUNK HEAD SCREW - M4X16 | - | |
| 11 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
07 12 9 905 817 | HEX NUTAlternative for position 11 | - | ||
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 11 | - | ||
| 12 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
| 13 | 07 11 9 901 736 | BALL PIN | - | |
| - | 07 11 9 936 426 | FLAT WASHER | - | |
| 14 | 07 11 9 987 611 | SAFETY CLIP - S10 | - | |
| 15 | 31 42 1 232 361 | STEERING DAMPER | - | |
| 16 | 31 42 1 234 398 | COVER | - | |
| 17 | 31 42 1 230 478 | CAP NUT - M28X1.5-ZNS | - | |
| 18 | 31 42 1 238 217 | COMPRESSION SPRING | - |
