R80 (2477) | Steering

RETROFIT KIT, HEATED HANDLE

Diagram #32_0771 | 7 parts

100%

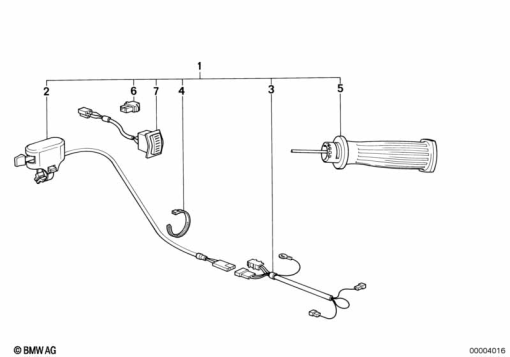

R80 (2477) RETROFIT KIT, HEATED HANDLE exploded view parts diagram

Parts List (7)

#Part NumberDescriptionQty
2
61 31 1 243 265
ADDITIONAL SWITCH (to 08/77)-
3
61 12 1 243 981
WIRING HEATED HANDLES (to 08/77)-
61 12 1 244 329
WIRING HEATED HANDLES (from 09/77)Alternative for position 3-
4
61 13 1 377 134
CABLE TIE - L=292MM/B=4,8MM-
5
61 31 1 243 978
HEATED HANDLE, RIGHT-
61 31 1 243 979
HEATED HANDLE, LEFTAlternative for position 5-
7
61 31 1 243 454
ADDITIONAL SWITCH (from 09/77)-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
