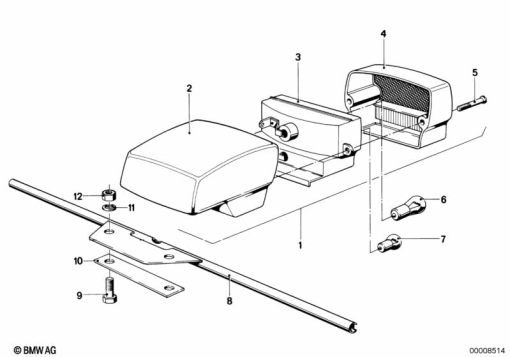

Parts List (25)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 21 1 243 756 | REAR LIGHT - OLSA (from 09/78) | - | |
| 2 | 63 21 1 243 686 | HOUSING - LIGHTA (from 09/78) | - | |
63 21 1 243 759 | HOUSING - OLSA (from 09/78)Alternative for position 2 | - | ||
| 3 | 63 21 1 243 685 | BULB SOCKET - LIGHTA (from 09/78) | - | |
63 21 1 243 685.1 | LED tail light 79-95Alternative for position 3 | - | ||
63 21 1 243 760 | BULB SOCKET - OLSA (from 09/78)Alternative for position 3 | - | ||
| 4 | 63 21 1 243 684 | LENS - LIGHTA (from 09/78) | - | |
63 21 1 243 758 | LENS - OLSA (from 09/78)Alternative for position 4 | - | ||
| 5 | 63 21 1 243 687 | FILLISTER HEAD SELF-TAPPING SCREW (from 09/78) | - | |
| 6 | 63 21 6 926 920 | LONGLIFE BULB - P21W/12V/21W | - | |
63 21 7 160 790 | LONGLIFE BULBAlternative for position 6 | - | ||
| 7 | 07 11 9 905 336 | BULB | - | |
| - | 63 21 7 160 790 | LONGLIFE BULB | - | |
| 8 | 63 23 1 243 618 | BRACKET REAR - 362MM /CR | - | |
63 23 1 243 6181 | BRACKET REAR - 362MM /SSAlternative for position 8 | - | ||
63 23 1 351 587.1 | 326MM SS REAR TURN BRACKETAlternative for position 8 | - | ||
| 9 | 07 11 9 913 016 | HEX BOLT - M6X20-8.8-ZNS | - | |
07 11 9 913 016.1 | STAINLESS 6 X 20 BOLTAlternative for position 9 | - | ||
| 10 | 63 23 1 352 944 | BASE | - | |
| 11 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 11 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 11 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 11 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 11 | - | ||
| 12 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - |
