R80 (2477) | Lighting

LIGHTING

Diagram #63_0971 | 6 parts

100%

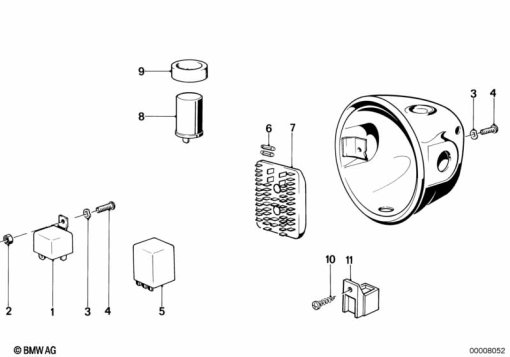

R80 (2477) LIGHTING exploded view parts diagram

Parts List (6)

#Part NumberDescriptionQty
1
61 32 1 358 198
RELAY-
2
07 11 9 904 032
HEX NUT - M8-8-ZNS3 (to 01/85)-
07 11 9 905 515
HEX NUT - M8-8-ZNNIV SIAlternative for position 2-
3
07 11 9 932 098
WAVE WASHER - B5-
6
61 13 8 760 138
FUSE - 8A-
7
61 13 1 243 012
CONTACT PLATE-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
