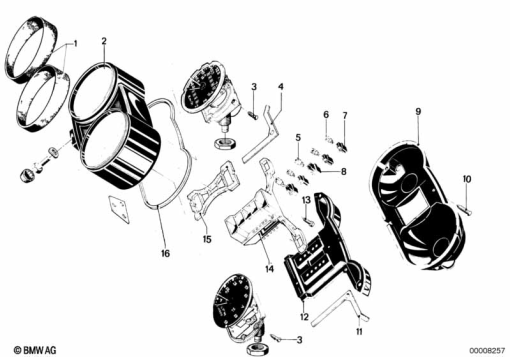

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 11 1 356 676 | SUPPORTING RING | - | |
| 2 | 62 11 1 243 436 | HOUSING (09/77 to 09/80) | - | |
| - | 62 11 1 244 769 | SCREW - 3X16 (09/77 to 09/80) | - | |
| 3 | 07 11 9 902 578 | RECESSED OVAL HEAD SHEET-METAL SCREW - ST3,5X13 | - | |
| 4 | 62 11 1 358 114 | GASKET | - | |
| 5 | 07 11 9 905 358 | BULB - W3W | - | |
07 11 9 978 372 | BULB 12 VOLT INSTRUMENTAlternative for position 5 | - | ||
| 6 | 63 21 7 167 000 | BULB - 12V 1,2W | - | |
| 7 | 62 11 1 244 643 | BULB SOCKET | - | |
| 8 | 62 11 1 356 714 | BULB SOCKET | - | |
| 9 | 62 11 1 356 674 | COVER | - | |
| 10 | 07 11 9 902 412 | RECESSED OVAL HEAD SHEET-METAL SCREW - ST2,9X13 | - | |
| 11 | 62 11 1 358 114 | GASKET | - | |
| 12 | 62 11 1 243 438 | COVER LID (from 09/77) | - | |
| 13 | 07 11 9 919 313 | FILLISTER-HEAD SCREW - M3X8 | - | |
62 11 1 244 769 | SCREW - 3X16Alternative for position 13 | - | ||
| - | 62 11 1 244 779 | HOUSING | - | |
| 14 | 62 11 1 243 439 | BULB SOCKET (from 09/77) | - | |
| 15 | 62 11 1 356 669 | GASKET | - | |
| 16 | 62 11 1 356 671 | GASKET RING | - |
