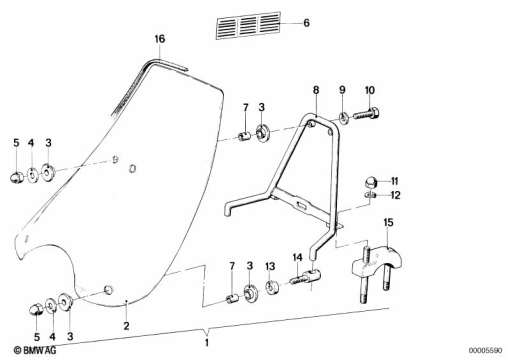

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 1 233 621 | SET: SET WINDSHIELD WITH FASTENING | - | |
| 2 | 46 63 2 307 331 | WINDSHIELD | - | |
| 3 | 46 63 1 233 610 | GROMMET | - | |
46 63 1 233 619 | GROMMETAlternative for position 3 | - | ||
| 4 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 4 | - | ||
| 5 | 46 63 2 300 370 | CAP NUT - M6 | - | |
| 6 | 46 63 1 453 085 | LABEL RIGHT | - | |
| 7 | 46 63 1 233 253 | BUSH - L= 8,5MM | - | |
| 8 | 46 63 1 233 606 | 1.95 | - | |
| 9 | 46 63 2 300 371 | WASHER | - | |
| 10 | 07 11 9 913 101 | HEX BOLT - M6X30 | - | |
| 11 | 07 11 9 924 334 | CAP NUT - M8 | - | |
07 11 9 924 3341 | CAP NUT M8 SSAlternative for position 11 | - | ||
| 12 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 13 | 46 63 1 233 609 | 0.01 | - | |
| 14 | 46 63 1 233 608 | 0.03 | - | |
| 15 | 32 71 1 233 838 | CLAMPING SUPPORT, TOP | - | |
| 16 | 46 63 1 234 842 | EDGE PROTECTION | - |
