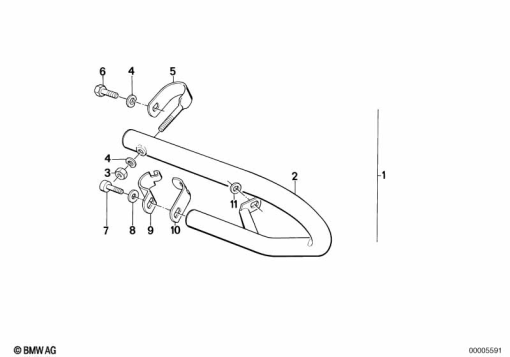

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 2 301 834 | SET: RETROFIT KIT, CYLINDER GUARD, CHROME | - | |
46 71 2 301 835 | SET: RETROFIT KIT, SAFETY BAR - MATT BLACKAlternative for position 1 | - | ||
| 2 | 46 71 1 237 751 | SAFETY BAR, LEFT - BLACK | - | |
46 71 1 240 037 | SAFETY BAR, LEFT - CHROMAlternative for position 2 | - | ||
46 71 2 301 809 | SAFETY BAR, RIGHT - CHROMAlternative for position 2 | - | ||
46 71 2 301 818 | SAFETY BAR, RIGHT - BLACKAlternative for position 2 | - | ||
| 3 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | - | |
| 4 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 5 | 46 71 1 237 759 | CLAMP | - | |
| 6 | 07 11 9 902 900 | HEX BOLT - M8X16-8.8-ZNS3 | - | |
| 7 | 07 11 9 904 101 | FILLISTER-HEAD SCREW - M8X16-8.8-ZNS3 | - | |
| 8 | 07 11 9 931 697 | WASHER - 8,4 | - | |
| 9 | 46 71 2 302 079 | CLAMP - BLACK | - | |
| 10 | 46 71 2 302 080 | BRACKET BLACK | - | |
| 11 | 07 11 9 901 766 | WASHER - A13/HV-ZNS (to 12/95) | - | |
| - | 07 11 9 901 023 | screw 8x1.25x16 socket head cap | - | |
| - | 07 11 9 904 101 | SCREW | - | |
| 11 | 07 11 9 904 119 | WASHER - 12-300 HV-ZNS3 | - | |
| - | 07 11 9 904 826 | Washer | - |
