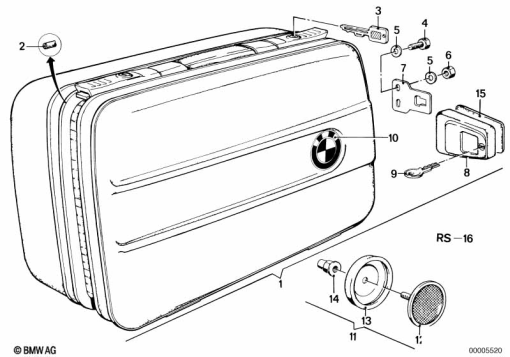

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 1 239 269 | SET: SET MOTOCASE WHITE (to 01/83) | - | |
| 2 | 46 54 1 238 911 | GASKET - 1550 X 4 | - | |
| 3 | 46 54 1 234 798 | STANDARD KEY (BLANK) - STAHLBLECH(341) (to 01/83) | - | |
46 54 1 237 764 | STANDARD KEY (BLANK) - DRUCKGUSS(150)Alternative for position 3 | - | ||
| 4 | 07 11 9 913 015 | HEX BOLT - M6X16-8.8-ZNS (to 01/83) | - | |
| 5 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 (to 01/83) | - | |
| 6 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 (to 01/83) | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI (to 01/83)Alternative for position 6 | - | ||
07 12 9 905 817 | HEX NUTAlternative for position 6 | - | ||
| 7 | 46 54 1 235 467 | SUPPORT SHACKLE (to 01/83) | - | |
| 8 | 46 54 1 235 468 | LOCK (to 01/83) | - | |
| 9 | 46 54 1 235 469 | STANDARD KEY (CODE) - S324 (to 01/83) | - | |
46 54 9 061 023 | STANDARD KEY (CODE) - S325 (to 01/83)Alternative for position 9 | - | ||
| 10 | 46 63 7 686 746 | BADGE - D=70MM | - | |
| 11 | 63 13 1 243 177 | SET: INSTALLING SET SIDE MARKING LIGHT | - | |
| 12 | 63 13 1 354 792 | REFLECTOR, RED | - | |
| 13 | 63 13 1 243 171 | BASE | - | |
| 14 | 51 18 5 480 150 | CAP NUT - M5 | - | |
| 15 | 46 54 1 239 478 | BASE - 2MM (to 01/83) | - | |
46 54 1 239 479 | BASE - 3MM (to 01/83)Alternative for position 15 | - | ||
| 16 | 46 54 1 238 987 | SET: REPAIR SET LOCK SHEET LOCK (to 01/83) | - | |
46 54 9 058 175 | REPAIR SET LOCK DIECASTAlternative for position 16 | - | ||
46 54 9 058 178 | REPAIR SET LOCK DIECAST - CODEAlternative for position 16 | - |
