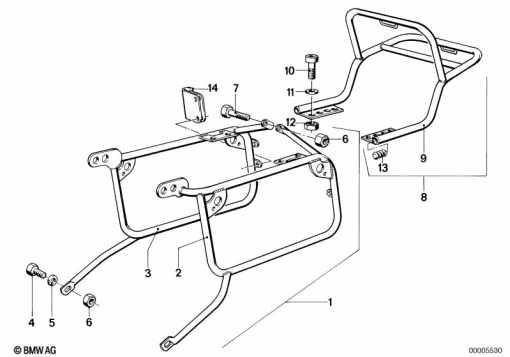

Parts List (32)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 1 239 489 | SET: CASE SUPP. KIT, NO INSTALL INSTRUCTIONS - MATT BLACK | - | |
46 54 1 239 487 | SET: CASE SUPP. KIT, NO INSTALL INSTRUCTIONS - CHROMEAlternative for position 1 | - | ||
| 2 | 46 54 1 239 481 | LEFT CASE HOLDER - MATT BLACK | - | |
46 54 1 240 941 | LEFT CASE HOLDER - CHROMEAlternative for position 2 | - | ||
46 54 1 241 575 | LEFT CASE HOLDER - CHROME KRAUSERKOFFEAlternative for position 2 | - | ||
| 3 | 46 54 1 239 482 | CASE HOLDER RIGHT - MATT BLACK | - | |
46 54 1 240 942 | CASE HOLDER RIGHT - CHROMEAlternative for position 3 | - | ||
46 54 1 241 576 | CASE HOLDER RIGHT - CHROME KRAUSERKOFFEAlternative for position 3 | - | ||
| 4 | 07 11 9 913 019 | HEX BOLT - M6X18 | - | |
07 11 9 913 470 | HEX HD SCREW M6X18 SSAlternative for position 4 | - | ||
| 5 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 5 | - | ||
| 6 | 07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 07/85) | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 6 | - | ||
07 14 7 575 163 | SELF-LOCKING HEX NUTAlternative for position 6 | - | ||
| 7 | 07 11 9 902 976 | HEX BOLT - M6X45 8.8 ZNS3 | - | |
| 8 | 46 54 1 239 485 | SET: LUGGAGE CARRIER - CHROME | - | |
46 54 1 239 486 | SET: LUGGAGE CARRIER - MATT BLACKAlternative for position 8 | - | ||
| 9 | 46 54 1 239 480 | BAGGAGE PORTER - MATT BLACK | - | |
46 54 1 240 944 | CARRIERAlternative for position 9 | - | ||
| 10 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | - | |
| 11 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 11 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 11 | - | ||
| 12 | 07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 07/85) | - | |
| - | 07 11 9 901 438.1 | M6X16 SS ALLEN BOLT | - | |
| 12 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | - | |
| 13 | 46 54 1 239 841 | BLIND PLUG | - | |
| - | 07 11 9 932 0701 | SS 6MM WASHER | - | |
| - | 07 11 9 932 073 | BLACK SPRING WASHER | - | |
| 14 | 46 54 1 234 511 | CLAMP | - | |
| - | 07 14 7 575 163 | SELF-LOCKING HEX NUT | - |
