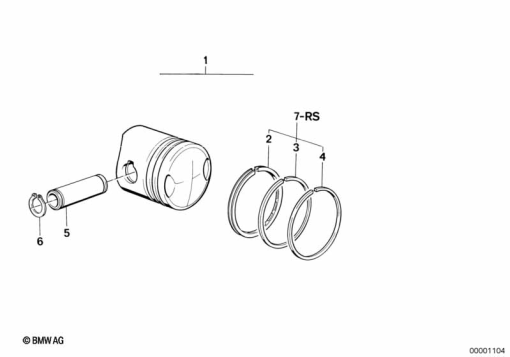

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 25 1 338 020 | PISTON - 84,76 E=9,2 (to 09/80) | - | |
11 25 1 338 021 | PISTON - 84,77 E=9,2 (to 09/80)Alternative for position 1 | - | ||
11 25 1 338 022 | PISTON - 84,78 E=9,2 (to 09/80)Alternative for position 1 | - | ||
11 25 1 338 417 | PISTON - 84.765 E=8.2 (to 09/80)Alternative for position 1 | - | ||
11 25 1 338 418 | PISTON - 84.775 E=8.2 (to 09/80)Alternative for position 1 | - | ||
11 25 1 338 419 | PISTON - 84.785/E8.2 (to 09/80)Alternative for position 1 | - | ||
11 11 1 337 904 | "NIKASIL"-CYLINDER - D=84Alternative for position 1 | - | ||
| 2 | 11 25 1 338 739 | PISTON RING - D=84,8 | - | |
| 3 | 11 25 1 335 130 | COMPRESS.RING - D=84,8 | - | |
| 4 | 11 25 1 337 276 | PISTON RING - D=84,8 | - | |
| 5 | 11 25 1 335 474 | GUDGEON PIN - 22X13X74 | - | |
| 6 | 11 25 1 335 476 | LOCK RING - A22X1.75 | - | |
| 7 | 11 25 1 337 398 | SET: REPAIR KIT PISTON RINGS - 84.8/E8.2/+0.00 | - |
