Parts List (31)

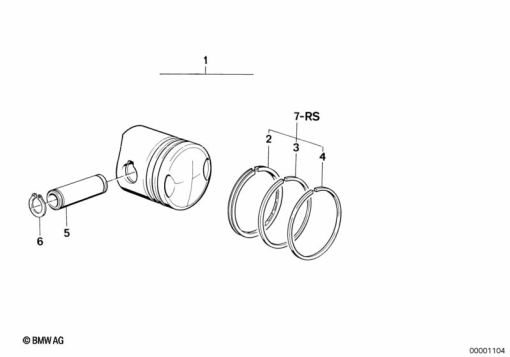

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 25 1 335 430 | PISTON - 84,76 E=9,2 (to 11/79) | - | |
11 25 1 335 431 | PISTON - 84,77 E=9,2 (to 11/79)Alternative for position 1 | - | ||
11 25 1 335 432 | PISTON - 84,78 E=9,2 (to 11/79)Alternative for position 1 | - | ||
11 25 1 335 433 | PISTON - 85,015+0,25 (to 11/79)Alternative for position 1 | - | ||
11 25 1 335 434 | PISTON - 85,025+0,25 (to 11/79)Alternative for position 1 | - | ||
11 25 1 335 435 | PISTON - 85,035+0,25 (to 11/79)Alternative for position 1 | - | ||
11 25 1 335 436 | PISTON - 85,265+0,50 (to 11/79)Alternative for position 1 | - | ||
11 25 1 335 219 | REPAIR KIT PISTON RINGSAlternative for position 1 | - | ||
11 25 1 335 437 | PISTON - 85,275+0,50 (to 11/79)Alternative for position 1 | - | ||
11 25 1 335 438 | PISTON - 85,285+0,50 (to 11/79)Alternative for position 1 | - | ||
11 25 1 335 411 | PISTON - 84,76 E=8,2 (11/79 to 09/80)Alternative for position 1 | - | ||
11 25 1 335 412 | PISTON - 84,77 E=8,2 (11/79 to 09/80)Alternative for position 1 | - | ||
11 25 1 335 413 | PISTON - 84,78 E=8,2 (11/79 to 09/80)Alternative for position 1 | - | ||
11 25 1 335 414 | PISTON - 85,015+0,25 (11/79 to 09/80)Alternative for position 1 | - | ||
11 25 1 335 415 | PISTON - 85,025+0,25 (11/79 to 09/80)Alternative for position 1 | - | ||
11 25 1 335 416 | PISTON - 85,035+0,25 (11/79 to 09/80)Alternative for position 1 | - | ||
11 25 1 335 417 | PISTON - 85,265+0,50 (11/79 to 09/80)Alternative for position 1 | - | ||
11 25 1 335 418 | PISTON - 85,275+0,50 (11/79 to 09/80)Alternative for position 1 | - | ||
11 25 1 335 419 | PISTON - 85,285+0,50 (11/79 to 09/80)Alternative for position 1 | - | ||
| 2 | 11 25 1 335 132 | CHAMFERED RING - D=84,8 | - | |
11 25 1 335 133 | CHAMFERED RING - +0,25Alternative for position 2 | - | ||
11 25 1 335 191 | CHAMFERED RING - +0,50Alternative for position 2 | - | ||
| 3 | 11 25 1 335 130 | COMPRESS.RING - D=84,8 | - | |
11 25 1 335 131 | COMPRESS.RING - +0,25Alternative for position 3 | - | ||
11 25 1 335 190 | COMPRESS.RING - +0,50Alternative for position 3 | - | ||
| 4 | 11 25 1 335 128 | RECTANGRING - D=84,8 | - | |
| 5 | 11 25 1 335 474 | GUDGEON PIN - 22X13X74 | - | |
| 6 | 11 25 1 335 476 | LOCK RING - A22X1.75 | - | |
| 7 | 11 25 1 335 217 | SET: REPAIR KIT PISTON RINGS - D=84,4 | - | |
11 25 1 335 218 | SET: REPAIR KIT PISTON RINGS - +0,25Alternative for position 7 | - | ||
11 25 1 335 219 | SET: REPAIR KIT PISTON RINGS - +0,50Alternative for position 7 | - |
